Improve Visibility and Optimize Waste Collection

Accurately monitor waste fill levels with RecycloBin UltraEye waste fill level sensors

WHAT DO WASTE FILL LEVEL SENSORS DO?

RecycloBin UltraEye waste fill level sensors accurately measures fill levels in bins using ultrasonic beams.



The waste fill levels are displayed as fill percentages on the mobile application RecycloBin Smart Assist. The fill percentages help you plan your dustbin clearance activities.

Fill levels-RecycloBin_edited.png
Fill levels-RecycloBin UltraEye-RecycloBin Smart Assist.png

40%

5%

80%

RecycloBin waste level sensors- UltraEye_edited_edited.png

BIN 1

RecycloBin waste level sensors- UltraEye_edited_edited.png

BIN 2

RecycloBin waste level sensors- UltraEye_edited_edited.png

BIN 3

Garbage Truck

Problems with traditional dustbins and fixed timed waste collection

Clearing bins too early or too late.

Clearing bins that are not sufficiently filled are a waste of time, resources and effort.

Clearing bins too late create an unhygienic atmosphere, health issues, extra collection costs and cleaning services.

Traditional bins need to be physically monitored by humans requiring time and causing health concerns.

waste bin-Recyclobin

Compare features and choose the sensor that fits you best!

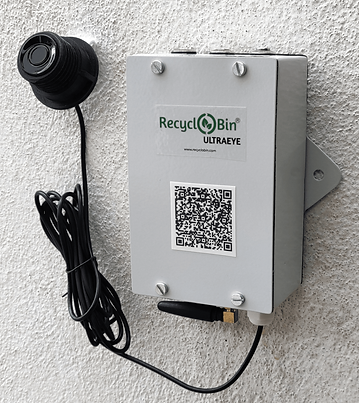

1. RECYCLOBIN ULTRAEYE

with separate network module and sensor probe

RecycloBin-UltraEye-network module and sensor probe (1).png

PRODUCT INFORMATION

STRUCTURE: The sensor probe is outside the network module box connected by an external cable.


MOUNTING: Network module can be mounted anywhere, inside or outside a bin while the sensor probe is installed inside the bin.


SENSOR: This module can accommodate single sensor or dual sensors.

​

DIMENSIONS: 130 mm x 83 mm x 48 mm

​

MATERIAL: Strong metallic body and water resistant sensor probe.

​

ADVANTAGE: A single unit can be used on a twin bin setup.

​

USEFUL IN: Places with limited network connectivity

​

​

2. RECYCLOBIN ULTRAEYE

integrated network module and sensor probe

RecycloBin-UltraEye-sensors-integrated n

PRODUCT INFORMATION

STRUCTURE: The sensor probe is fixed on the network module box.


MOUNTING: The whole unit is directly installed inside the vertical top cover of a bin.


SENSOR: Single sensor only.

​

DIMENSIONS: 130 mm x 83 mm x 48 mm

​

MATERIAL: Strong metallic body and water resistant sensor probe.

​

ADVANTAGE: Discreet and hidden from direct public view.

​

USEFUL IN: Places with good network connectivity.

TECHNICAL SPECIFICATIONS OF RECYCLOBIN ULTRAEYE WASTE FILL LEVEL SENSORS
MATERIAL: Metallic body
SENSOR TYPE: Ultrasonic
DIMENSIONS (lxbxw):  130 mm x 83 mm x 48 mm
BATTERY TYPE: Removable and rechargeable unit
BATTERY CAPACITY: 10,000 mAh LiPo
TEMPERATURE RANGE:  -20 °C to 80 °C
WATER RESISTANCE: Yes
DETECTION RANGE: 20- 400 cm
MEASUREMENT INTERVAL: Every 15 minutes
CONNECTIVITY: GSM backed by multinational telecom operator
VARIANTS AVAILABLE:
1. Integrated network module and sensor probe (Discreet and hidden from direct public view.)
2. With separate network module and sensor probe (A single unit can be used on a twin bin setup.)
SALIENT FEATURES:
1. Automatic bin clearance detection.
2. Bin depth calibration using device buttons (does not require additional calibration hardware).

HOW DO THEY WORK?

With separate network module and sensor

RecycloBin-UltraEye-network module and sensor probe.png

Integrated network module and sensor


SMART FEATURES FOR SMARTER WASTE LEVEL MONITORING

RecycloBin-waste level monitoring-ultrae

Low power, High accuracy

Ultrasonic sensor technology consumes very low power and provides high accuracy waste level measurements.

RecycloBin-waste level monitoring-ultrae

Lasting Reliability

Rechargeable Lithium polymer battery capacity of 10000 mAH ensures long life.


Reliable Wireless Communication

Data communication using 2G network provided by world's leading telecom company.

RecycloBin-waste level monitoring-ultrae

Portable Batteries

Removeable batteries can be charged at a convenient base location away from the bin location.

RecycloBin-waste level monitoring-ultrae

Sturdy and Water resistant

Strong metallic body and water-resistant sensor probe, ensuring protection against theft, vandalism, moisture, and rain.

RecycloBin-waste level monitoring-ultrae

Zero Downtime

Additional hot-swappable batteries provide backup during charging cycles ensuring zero downtime.

RecycloBin Waste level sensor-earthzy_ed

Flexibility

Sensor can be mounted on either bin lid, or separate mounting pole or any other customized arrangement.

RecycloBin Waste level sensor-earthzy_edited_edited.png

Quick Commissioning

Faster setup with a simple 2-step calibration process without any computer or additional equipment.

RecycloBin UltraEye sensor is suitable for bins of any type and capacity

1930264_check_complete_done_green_succes
RecycloBin dustbin_edited.png
1930264_check_complete_done_green_succes
RecycloBin dustbin_edited.png
1930264_check_complete_done_green_succes
RecycloBin dustbin_edited_edited.png
1930264_check_complete_done_green_succes
RecycloBin dustbin_edited.png
RecycloBin dustbin_edited.png
1930264_check_complete_done_green_succes
RecycloBin dustbin_edited.png
1930264_check_complete_done_green_succes
1930264_check_complete_done_green_succes

PAPER

1930264_check_complete_done_green_succes

FOOD

1930264_check_complete_done_green_succes

MUNICIPAL

1930264_check_complete_done_green_succes

E-WASTE

1930264_check_complete_done_green_succes

BIO- MEDICAL

1930264_check_complete_done_green_succes

HAZARDOUS

1930264_check_complete_done_green_succes

INDUSTRIAL

Fog and Nature
